Lynx Smart BMS

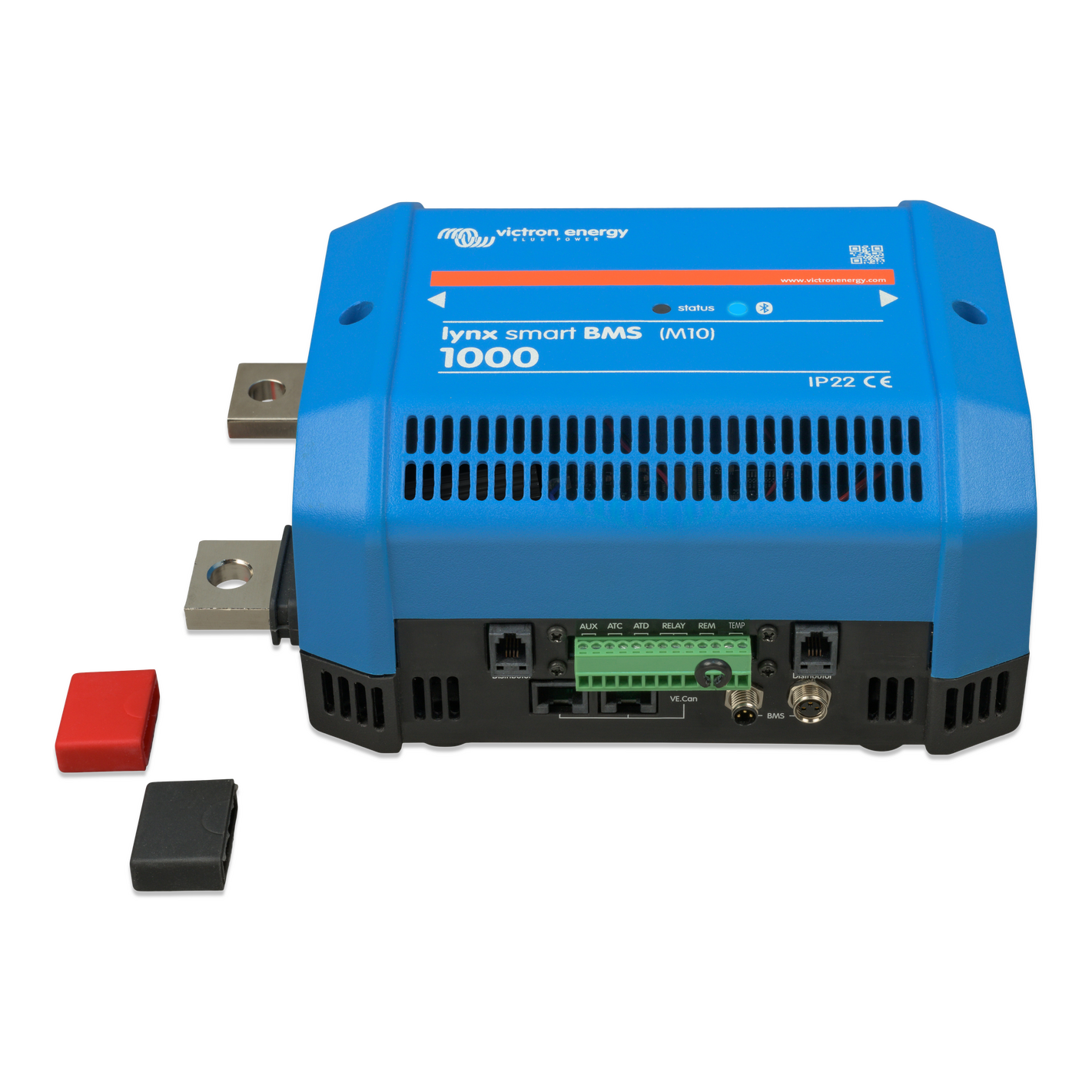

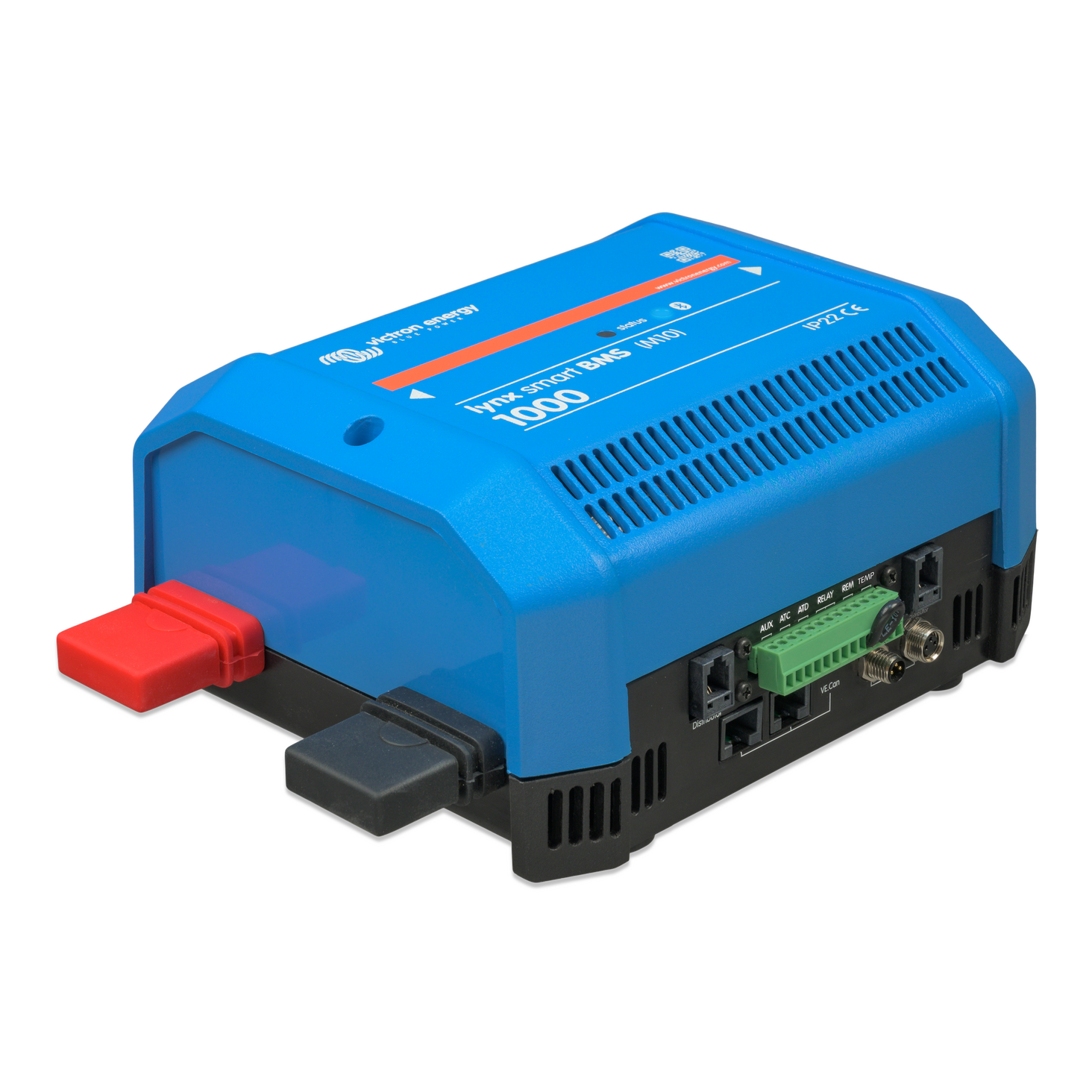

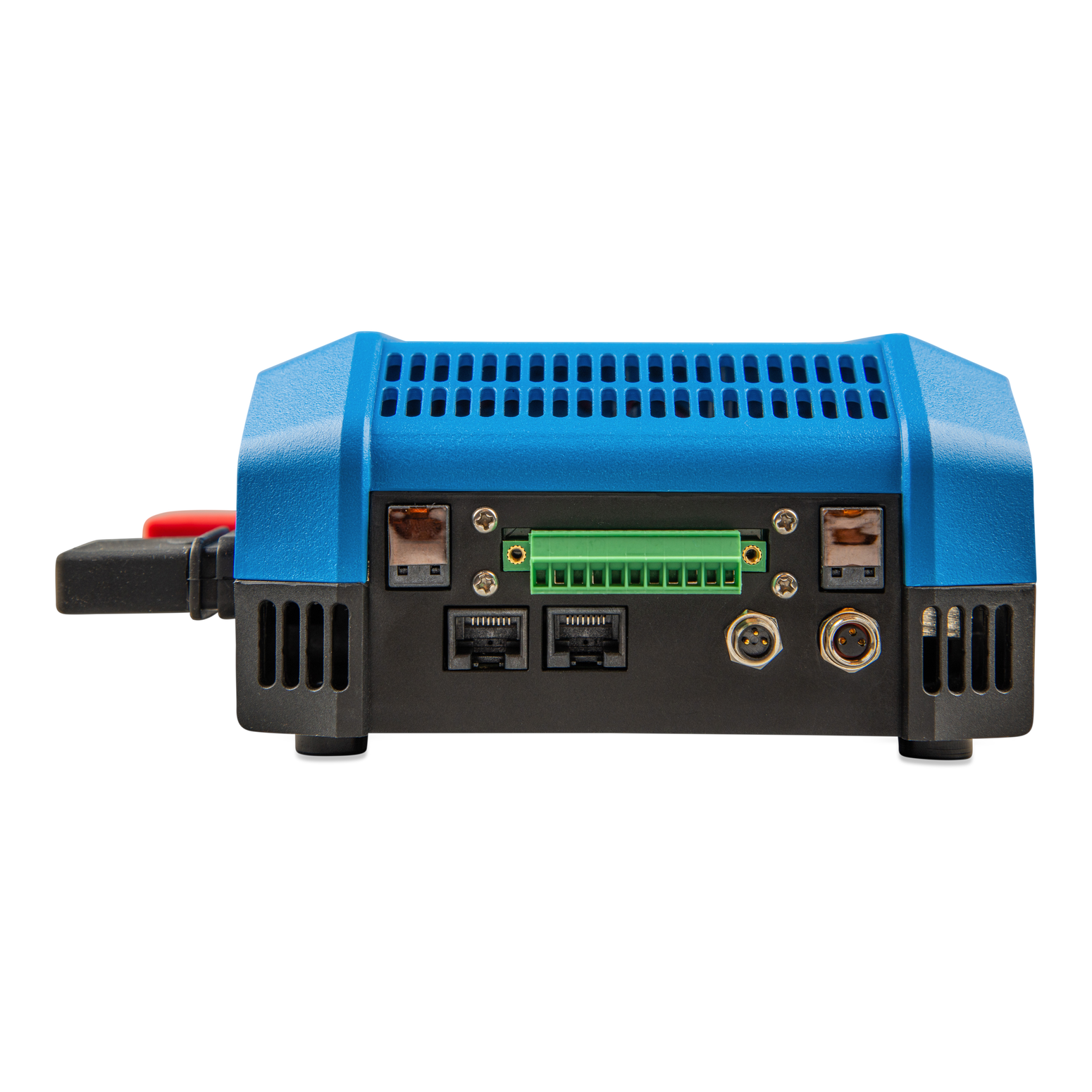

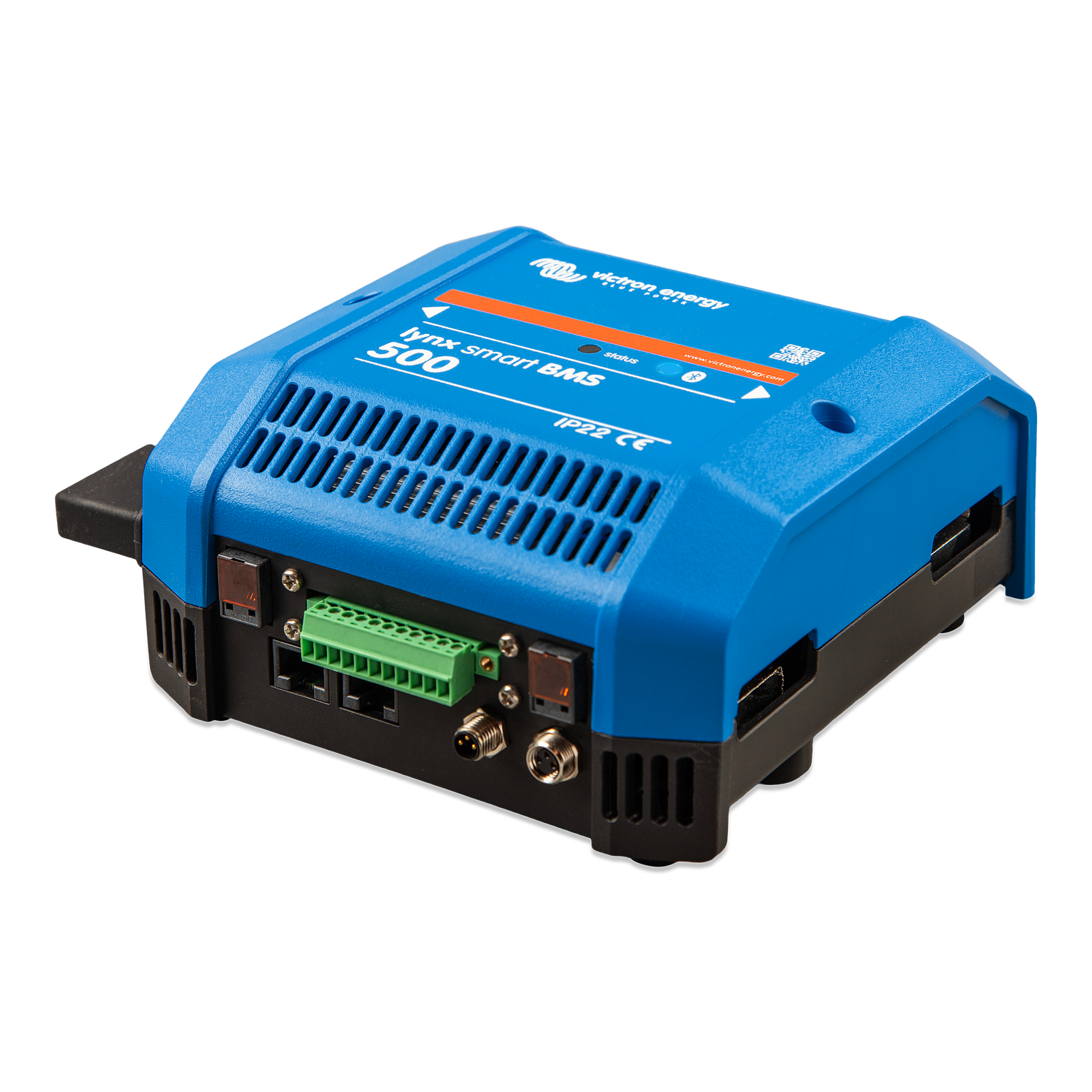

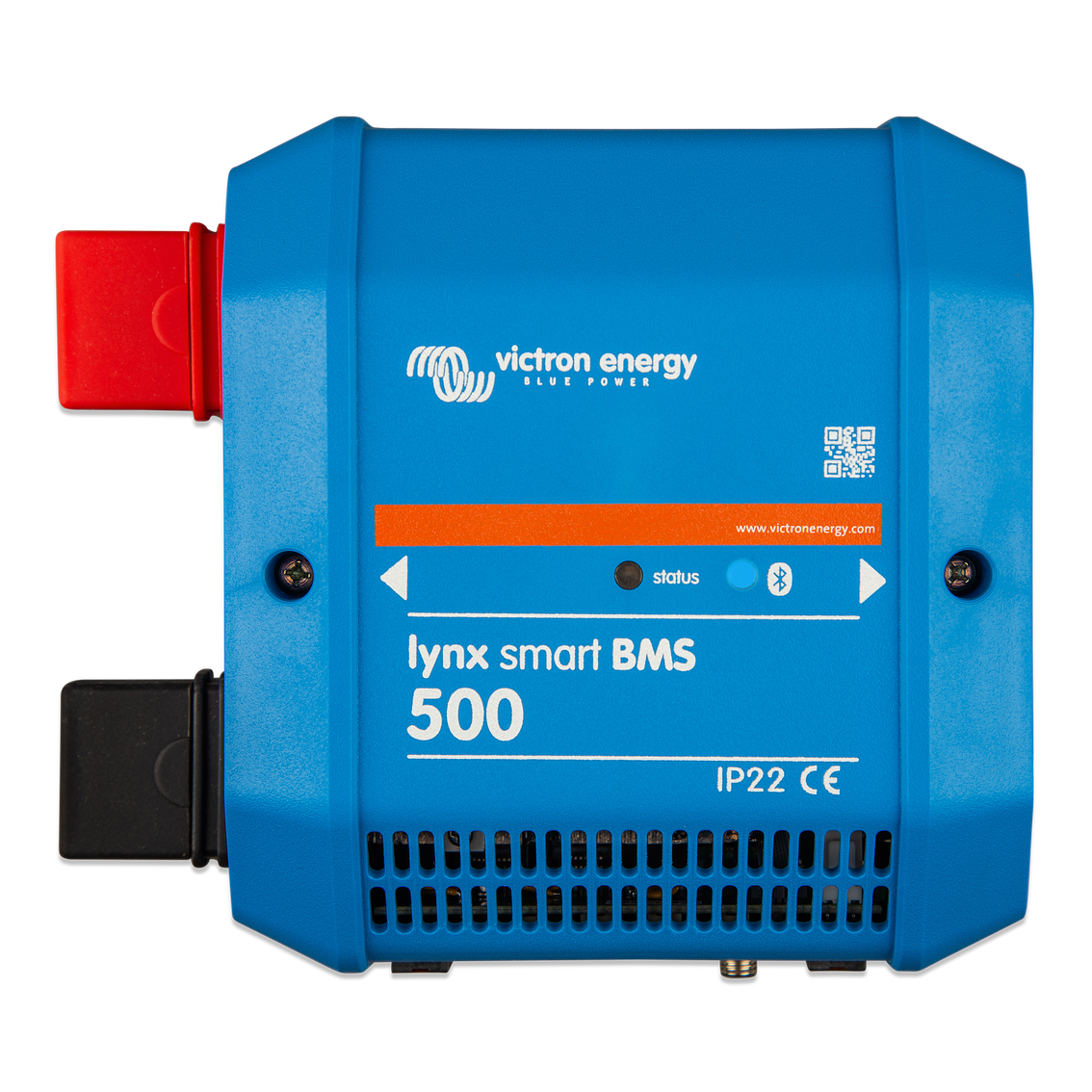

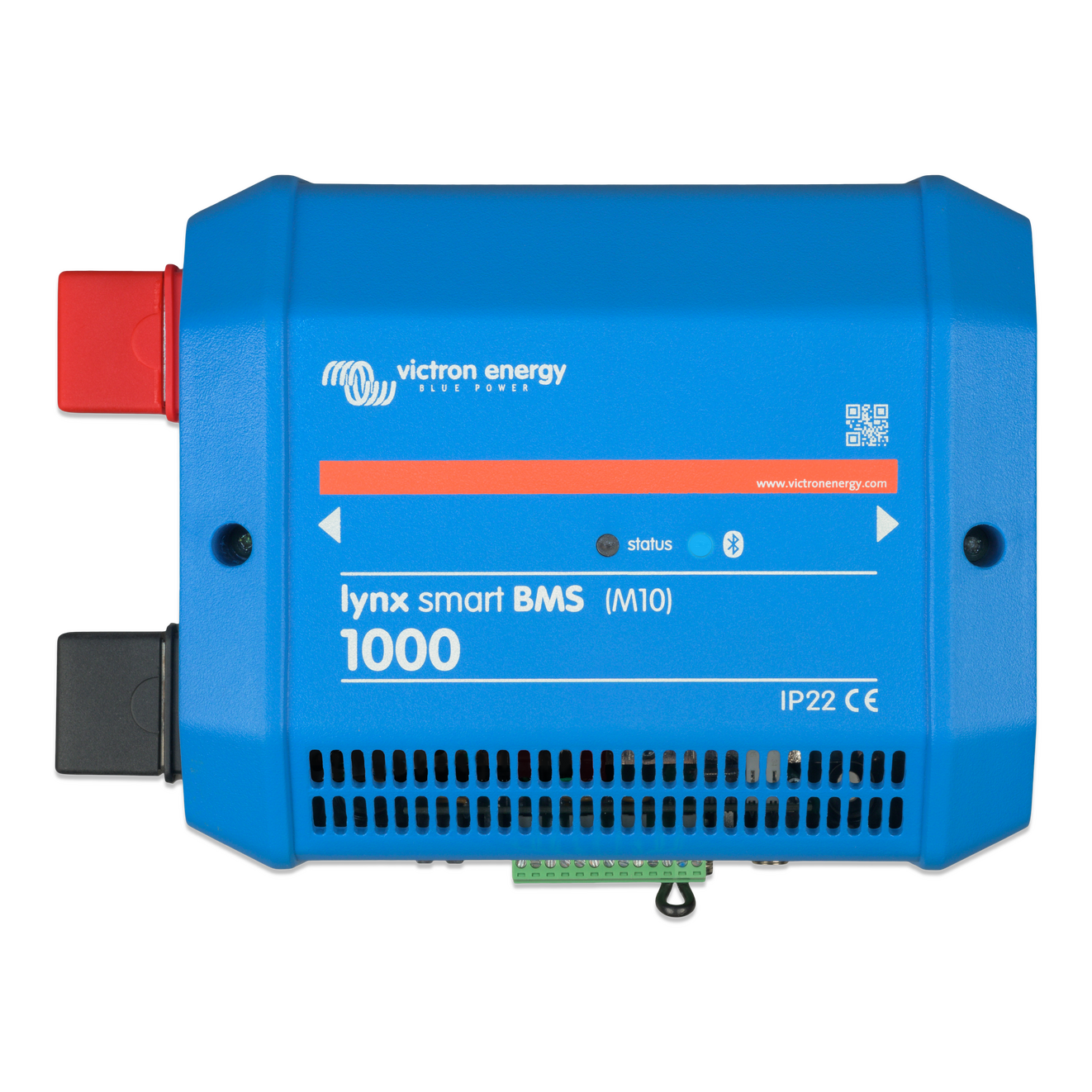

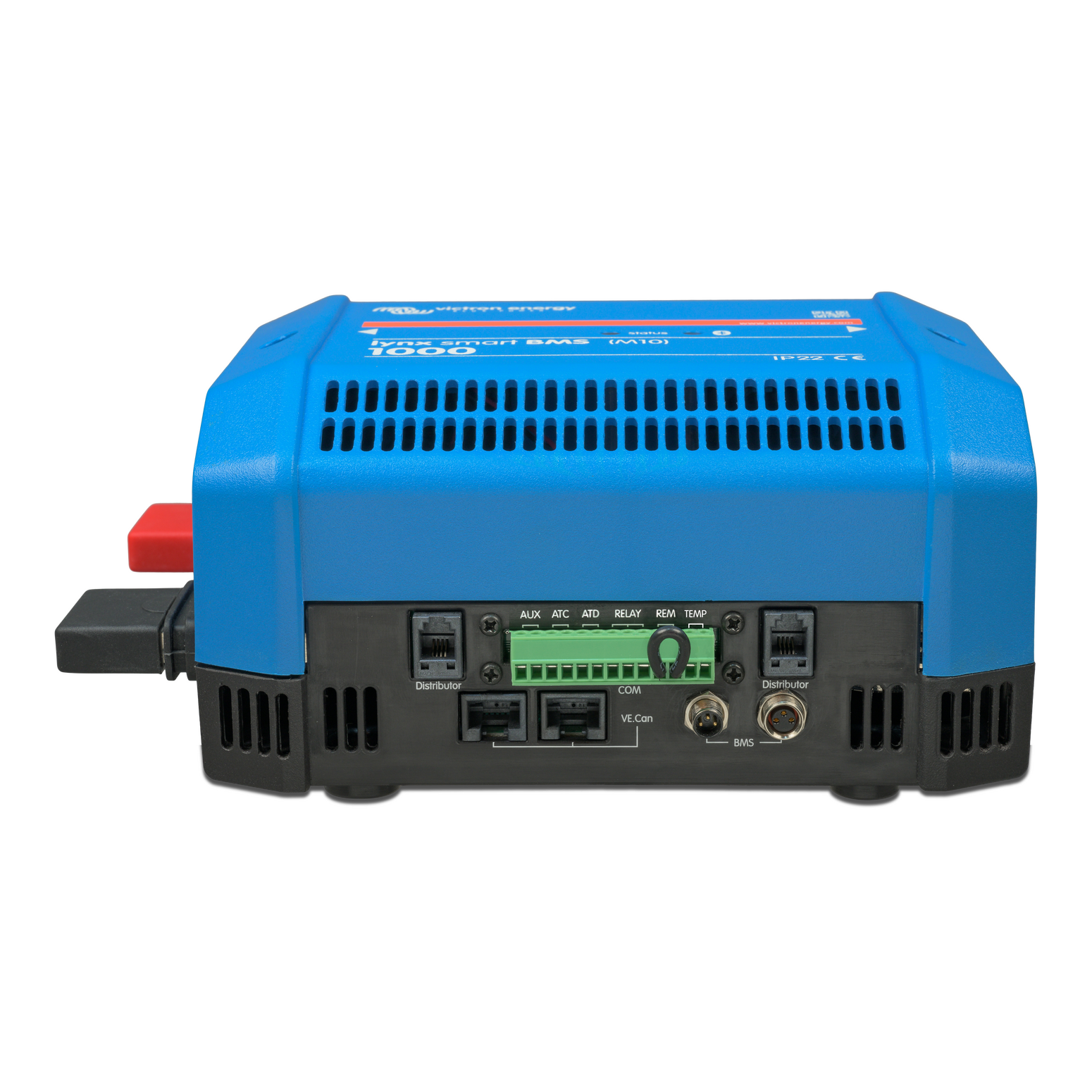

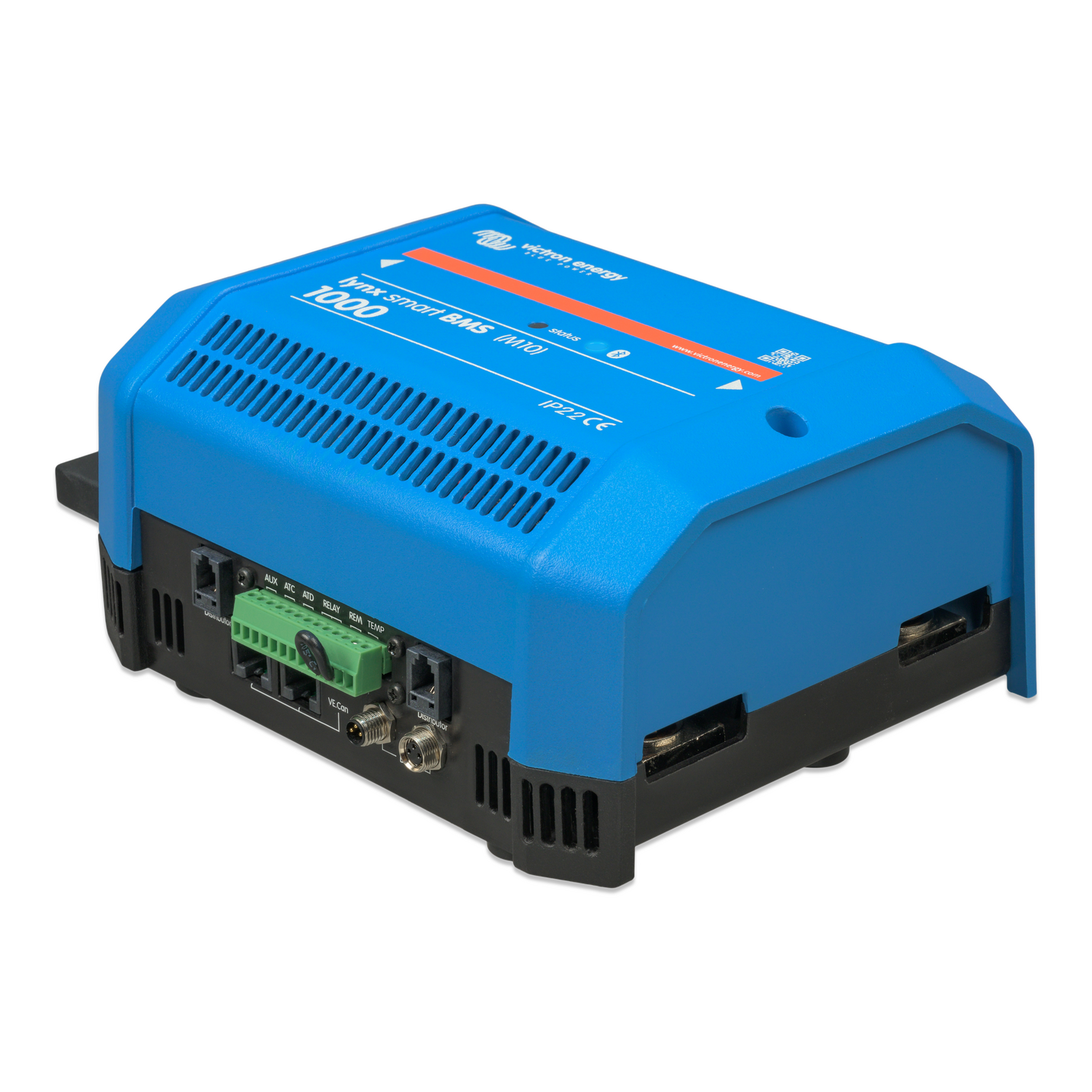

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A (with M8 busbar connections) and 1000A (with M10 busbar connections).

The main features are:

• Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.


• Battery monitor, indicating state of charge percentage and more data.


• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.


• Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.


• Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.
